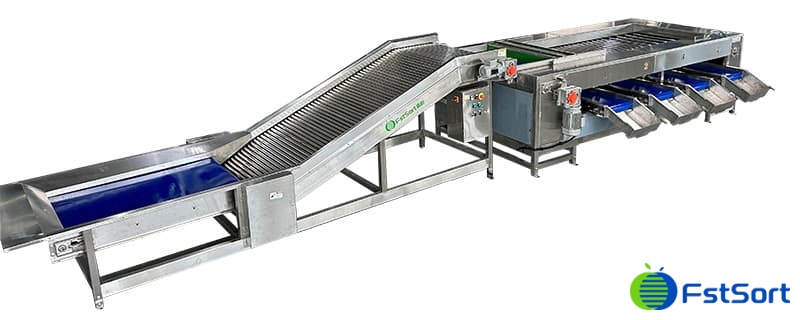

This Fstsort orange sorting grading machine consists of automatic feeding hopper, roller elevator, roller inspection table and sorting machine.
Description:
This Fstsort orange sorting grading machine consists of automatic feeding hopper, roller elevator, roller inspection table and sorting machine. It can be used for sorting fruits and vegetables by size, such as potato, orange, lemon, mangosteen, carrots, etc. Material contacting fruit is stainless steel.
Fast speed, simple installation and operation.
Speed of this machine can be adjusted.
Food grade conveyor belt is soft, avoid hurting fruit skin.
Specification:
| Model | FIOS-5000 |
| Voltage | 380v |
| Power | 1.35kw |
| Capacity | 6t-8t/h |
| Grades | 4 |
| Dimension (mm) | 7870*1800*1230 |
Orange cleaning polishing sorting machine

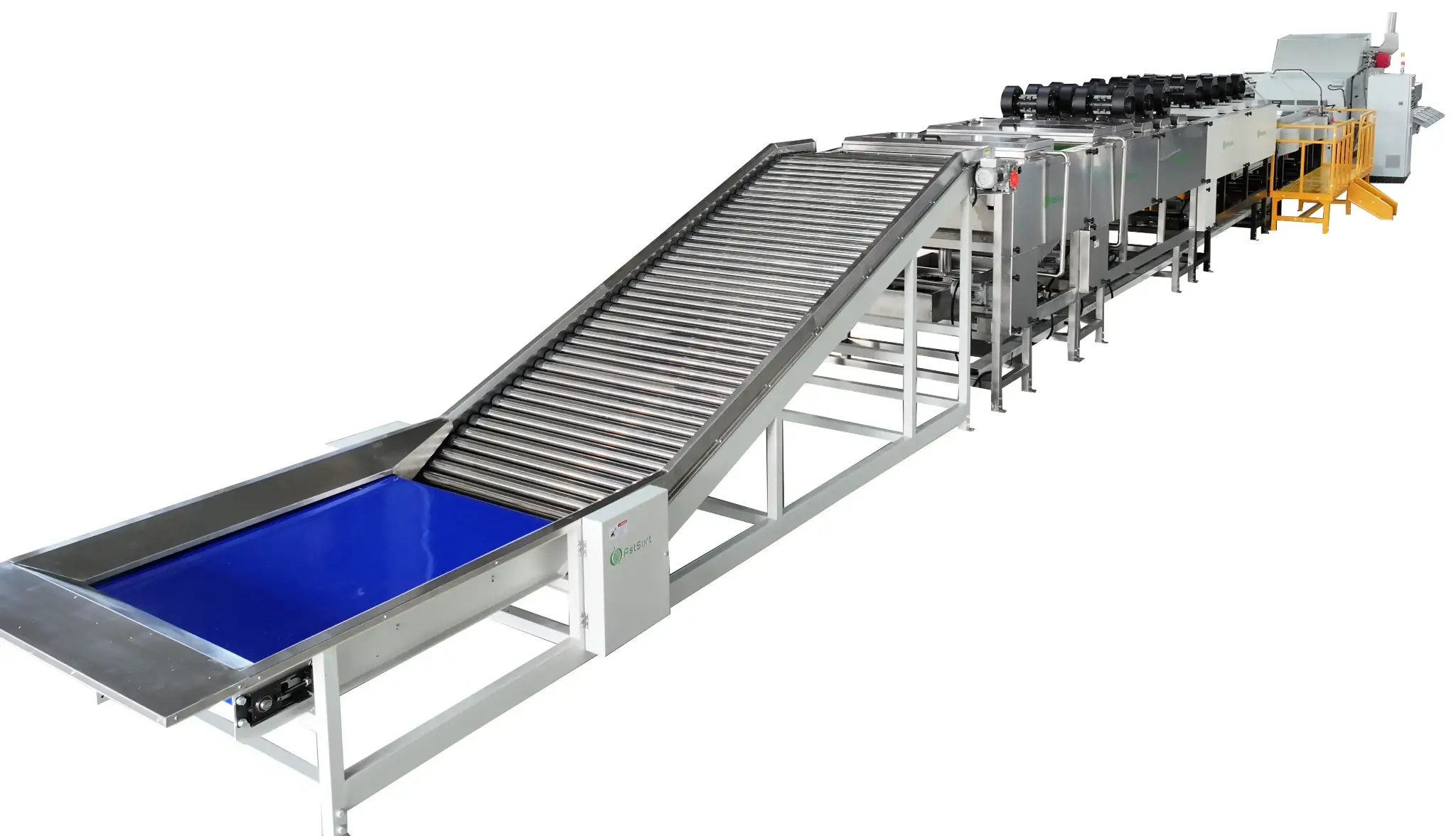

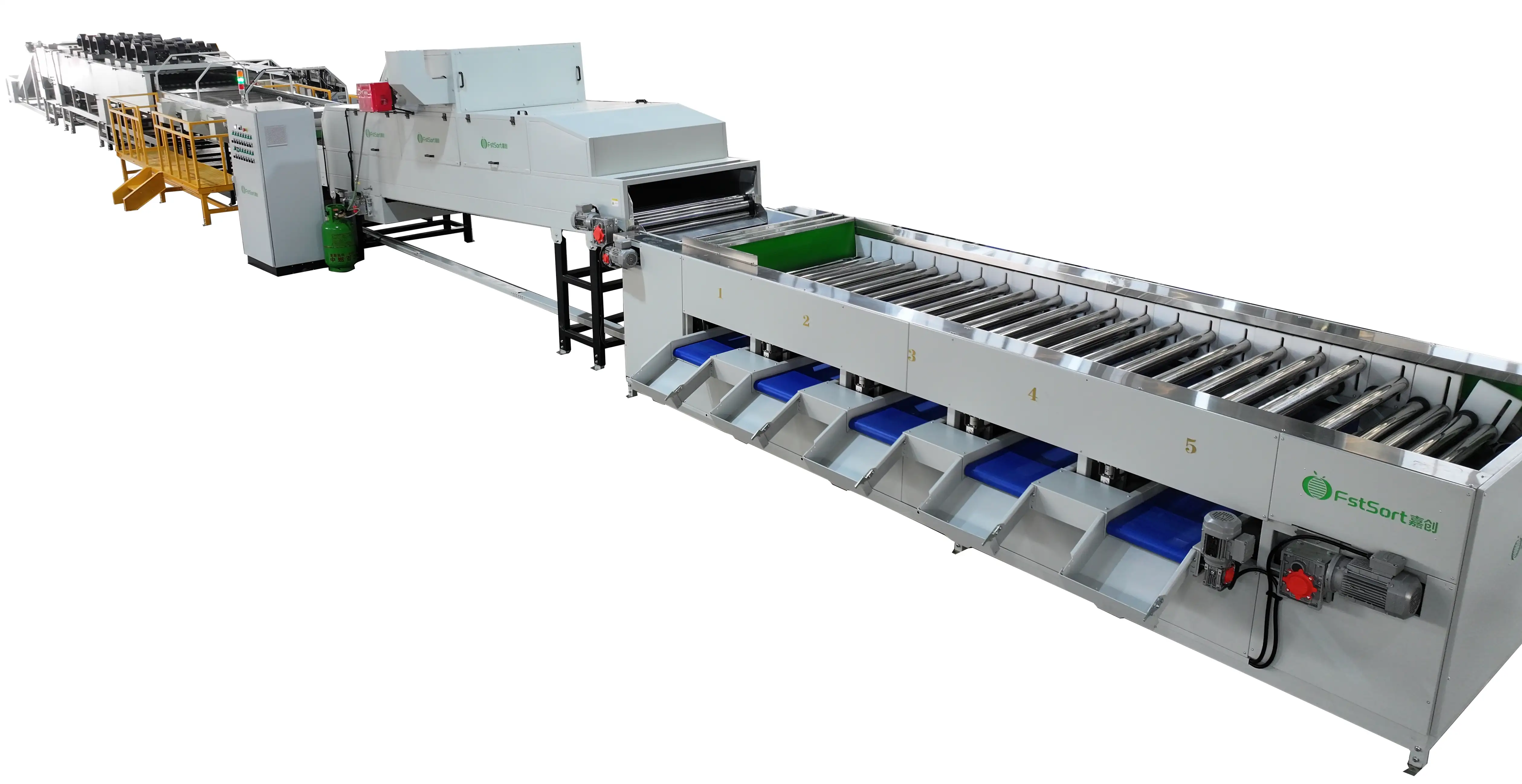

Orange Washing, Drying, Waxing and Grading Line
Description:
This Fstsort fruit waxing line consists of automatic feeding hopper, roller elevator&inspection table, brush & water spray cleaning, brush polishing&air blowers, waxing, hot air drying, size grading, oil burner and controller . With the features of centralized controlling, automatic temperature controlling, low cost, simple operation, it is suitable for avocado, orange, lemons, citrus, mandarin and other fruits. Grading section can be made with roller grader or drum grader according to the shape of fruits.
Specification：
| Model | FIOP-8000B |
| Capacity | 8-10t/h |
| Grades | 5 |
| Quantity of brushes | 60pcs |
| Quantity of dryers | 14pcs |
| Dimension(mm) | 30800*1800*2500 |
| Total Power | 30.97kw |
| Voltage | 380V |
FIOP8000B
Further process you may need
We can design a fully automated box filler. FstSort box packing system to do bulk packs of 5kg,8kg,10kg.
