This buyer's guide compares three types of bell pepper sorting machines: roller graders (diameter sorting, low cost, works with all pepper shapes), electronic weight sorters (±2g accuracy, 7-12 grades, mainly for standard bell peppers), and optical sorters (color and defect sorting, 9-20 grades, for premium export markets). Includes specifications, cost comparison, installation requirements, packaging integration, and a decision flow to help buyers select the right equipment.
At present, there are many types of bell pepper sorting machines on the market, with fast sorting speed and high efficiency. The sorting range can be adjusted according to the different needs of users, and the selection range is wide. Here are some common bell pepper graders for everyone.
Sweet pepper, also known as bell pepper and color pepper, is a widely grown and consumed vegetable. Due to its unique flavor, rich nutritional value and diverse uses, bell pepper is popular in the global market.
In recent years, with the increasing demand for healthy diets, the production of bell peppers has also increased significantly. However, bell peppers are perishable vegetables. If they are not sorted and packaged in time after picking, they may rot and deteriorate during transportation and storage, affecting the overall quality and causing economic losses.
To help you choose the most suitable equipment for your specific needs, this guide compares the three main types of bell pepper sorting machines available today.
For detailed technical specifications of each machine type, visit our Bell Pepper Grading Machine product page
Quick Comparison Table
Your main need | Best machine type | Accuracy | Number of grades | Relative cost | Suitable pepper types |
|---|---|---|---|---|---|
Sort by diameter / size | Pepper roller grading machine | Low (shape-dependent) | 3–5 | Low | Wide range: bell peppers, capasicum, cherry bell peppers, chili pepper, jalapeño peppers, conical shaped peppers (long, round, oval) |
Sort by weight | Bell pepper weight sorting machine | ±2g | 7–12 | Moderate | Mainly standard bell peppers (due to single-file feeding and fruit cup design) |
Sort by color + defects | Bell pepper optical sorting machine | High | 9–20 | High | Mainly standard bell peppers (due to single-file feeding and fruit cup design |
Pepper roller grading machine
This sorting standard is based on size (diameter) , simple and efficient, and can reach 5-8 tons per hour. This bell pepper grader aims at speed and large capacity. Improve production efficiency and reduce dependence on labor.
How it works: Peppers travel on tapered rollers. As the gap between rollers gradually increases, peppers fall through when the gap exceeds their diameter. For example, you can set gaps for 80mm, 90mm, 100mm, and >100mm.
Key features:
High capacity: 5-8 tons per hour
Low cost: Most affordable option
Easy installation: almost 100% of customers can install and run it themselves using the manual or video tutorial. Almost no technical support required.
Small footprint
Adjustable grade sizes: Fixed or adjustable roller gaps available
Number of grades: Typically 3 to 5 (maximum 6), because peppers fall through the roller gaps based on size
Wide application range: Suitable for bell peppers, capasicum, cherry bell peppers, chili pepper, jalapeño peppers, conical shaped peppers, and other long, round, or oval-shaped peppers
Limitations:
Lower accuracy compared to weight sorters. Accuracy is affected by fruit shape – flat or irregularly shaped bell peppers may fall into the wrong grade.
Real example: A Middle Eastern customer required four grades (8cm, 9cm, 10cm, >10cm). However, flat-shaped peppers caused significant errors.
Packaging integration: After grading, the machine is usually paired with a fill & weigh system for boxes or cartons.
This bell pepper sorter will be ideal for small farms and packaging plants.

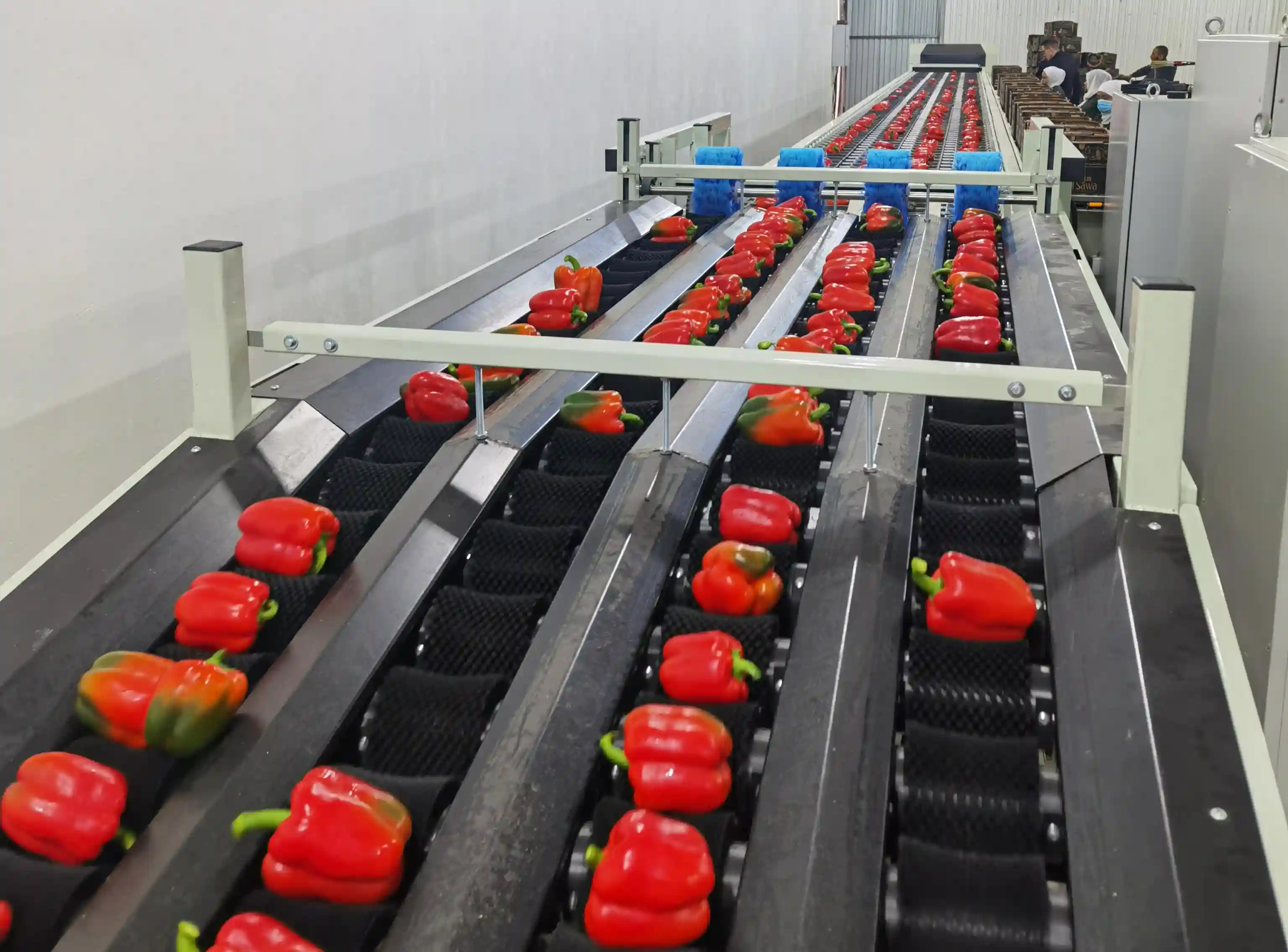

Bell pepper weight sorting machine
This equipment uses an intelligent sensor dynamic weighing system for sorting. Compared with roller sorting machines, it has high accuracy and can adapt to a wide range of fruit sizes. Let every bell pepper you harvest play a role and minimize waste.
How it works:
The machine operates on an in-motion weighing principle. Products are first singulated and aligned via a V-belt conveyor system before being transferred onto individual fruit cups or trays. As each cup passes over a high-precision load cell, the dynamic weight of the fruit is captured in milliseconds. The signal is processed by a PLC (Programmable Logic Controller) based on preset weight ranges. When the fruit reaches the designated drop-out point, a PLC-controlled solenoid valve actuates a high-speed ejector finger or tilts the cup, redirecting the fruit to the specific exit chute or packing station without mechanical damage.
Key features:
High accuracy: ±2g, much higher than roller graders
In-motion weighing: Captures weight in milliseconds without stopping the product flow
Special design for bell peppers: Custom fruit cups, plus soft materials (food-grade rubber or foam) at the infeed, ejector, and discharge points to prevent damage from drops
Flexible number of grades: Typically 7 to 12 exits
Moderate cost: Good balance between price and performance
Capacity: Approximately 1000 kg+ per hour per lane (1-8 lanes available)
Applicable pepper types: Mainly standard bell peppers. Due to the single-file feeding requirement and the fixed shape of fruit cups, this machine works best with uniform, roundish bell peppers.
Installation: Slightly more complex than roller graders. Some customers can install using manuals or remote video guidance; others may require on-site installation support.
Packaging integration: Usually paired with a rotary packing system with light indicators. Each exit is preset with a target box weight. When the target is reached, a light turns on and the feed stops automatically until the box is cleared manually.
This color pepper sorting machine is suitable for small and medium suppliers.
Bell pepper optical sorting machine
This machine allows you to quickly and efficiently evaluate quality based on color, weight, shape and size. At the same time, the external quality measurement system can detect scars, rot, sunburn, mechanical damage and spots on the surface of bell peppers. By correctly grading each bell pepper, you can quickly and efficiently provide perfect peppers to your customers.
How it works:
Step | Process |
|---|---|
1 | Peppers are fed into the singulator, which aligns and rotates each fruit for optimal camera angles |
2 | Multiple high-speed, high-resolution cameras capture images from different angles |
3 | The Fstsort visual identification system uses high-resolution cameras and visual recognition algorithms to analyze color, size, shape, and surface defects |
4 | The system classifies each pepper according to your preset grades |
5 | Peppers are directed to the appropriate exit (custom number of outlets) |
The AI camera system is integrated with a weight sorter, allowing simultaneous sorting by weight and appearance.
Key features:
Multi-criteria sorting: Color, defects (scars, rot, sunburn, mechanical damage, spots), weight, size, and shape
Highest number of exits: 9 to 20 exits depending on packaging needs and throughput
Excellent quality control: Removes defective peppers automatically
Zero physical contact: Cameras only – no damage to delicate skin
High-speed processing: Matches the throughput of roller or weight sorters
Applicable pepper types: Mainly standard bell peppers. Like weight sorters, optical sorters require single-file feeding and consistent fruit orientation for accurate camera detection. Irregular or elongated peppers (e.g., chili, jalapeño, conical shapes) are difficult to align and rotate properly.
Limitations:
High cost: Significantly more expensive than the two other types
Complex installation: Professional technical staff must visit the site for installation, calibration, and operator training
Requires database for AI training: Customer product photos must be collected for machine learning
Packaging integration: Exits can connect to automatic box/carton fillers, or to large manual packing tables for final inspection and premium packing.
This sweet pepper grader suits large packaging plants and bell pepper exporters.
Summary: Which one should you choose?
If you need... | Choose... | Notes |
|---|---|---|
Low cost, high speed, diameter-based sorting, self-installation | Roller grading machine | Works with almost all pepper shapes (bell, chili, jalapeño, conical, long, round, oval) |
±2g accuracy, weight-based pricing, low fruit damage, 7-12 grades | Weight sorting machine | Best for standard bell peppers. Limited for elongated or irregular shapes. |
Color sorting, defect removal, premium export quality, 9-20 grades/exits | Optical sorting machine | Best for standard bell peppers. Requires uniform shape for camera alignment. |
Frequently Asked Questions
Q: Can a roller grader handle flat or irregular bell peppers?
A: Not recommended for flat bell peppers. However, the roller grader has the widest application range overall. It works well with bell peppers, capasicum, cherry bell peppers, chili pepper, jalapeño peppers, conical shaped peppers, and other long, round, or oval-shaped peppers.
Q: How accurate is a bell pepper weight sorter?
A: ±2g accuracy. This can be maintained with regular calibration (once a month using standard weights).
Q: Can an optical sorter separate green and red bell peppers?
A: Yes. The AI camera analyzes color coverage area. You can set criteria such as "red area >30%" for sorting partially ripened peppers.
Q: Can I combine different sorters?
A: Yes. Many large packhouses use a roller grader for pre-grading (removing oversize and undersize) followed by a weight or optical sorter for final precision grading. This works well when processing standard bell peppers.
Q: What is the typical capacity of a bell pepper weight sorter?
A: Approximately 1000 kg per hour per lane. Multiple lanes (1-4) increase total capacity.
Looking for more technical data? Check our complete Bell Pepper Grading Machine product page for specifications, dimensions, and project case studies.
Next Steps
In order to optimize the entire production line, we can also provide you with supporting equipment, such as tippers, washing machines, air dryers, hot drying tunnels, inspection tables, packaging tables and automatic packaging systems.
Contact us to discuss the bell pepper sorting equipment that best suits you – tell us your pepper variety (bell pepper, chili, jalapeño, conical, etc.), shape, target capacity (tons per hour), and number of grades needed. We can provide a free customized layout and make your production efficiency achieve new breakthroughs!
