Boost post-harvest efficiency & grading consistency for Zimbabwe blueberries (900–1000 kg/h). Anti-rollback elevator, belt eliminator, inspection table, two hole calibrators. Easy install & operate. Ensures smooth flow, defect removal, manual check, accurate sizing.
Country / Region
Zimbabwe
Fruit / Material
Blueberry
Capacity
900kg-1000kg/h
Equipment Configuration
an anti-rollback elevator, a belt Eliminator, a belt inspection table and two hole calibrators.
The Challenge: Balancing Efficiency, Space, and Fruit Integrity
As Zimbabwe's berry sector cements its position in international premium markets, exporters face immense pressure to minimize post-harvest sorting windows while safeguarding fruit quality. Our client required a solution tailored to precise operating constraints:
Bloom & Tissue Protection: Blueberries possess a natural waxy coating ("bloom") that signifies freshness. Conventional, aggressive sorting drops strip this bloom and induce bruising, decreasing export shelf-life.
Spatial Efficiency: Packing facilities often operate with predefined layouts. The machine needed to deliver industrial-scale throughput without occupying massive warehouse space.
Low Technical Barrier: The sorting machinery needed to be intuitive, enabling immediate operational proficiency for local staff without specialized engineering assistance.
The Solution: An Integrated, Low-Drop Processing Architecture
We engineered an optimized, sequential processing line engineered for modularity and seamless fruit flow. The layout consists of four core technological segments:

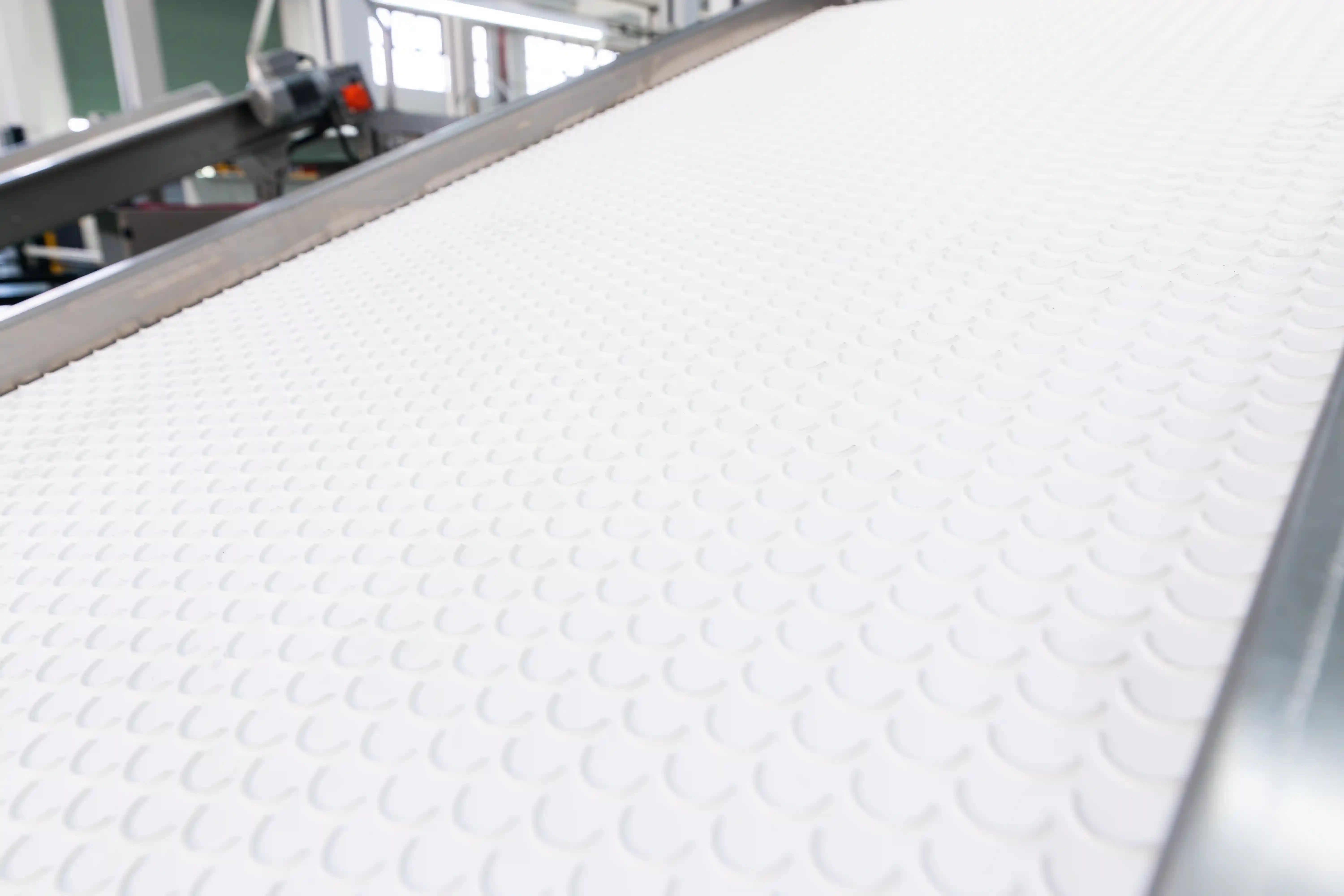

1. Anti-Rollback Incline Elevator
A continuous-feed system utilizing bespoke high-traction flights. This prevents the delicate round fruit from rolling back down the incline, delivering a highly uniform, singular layer of blueberries into downstream machinery at a locked rate of 1,000 kg/h.

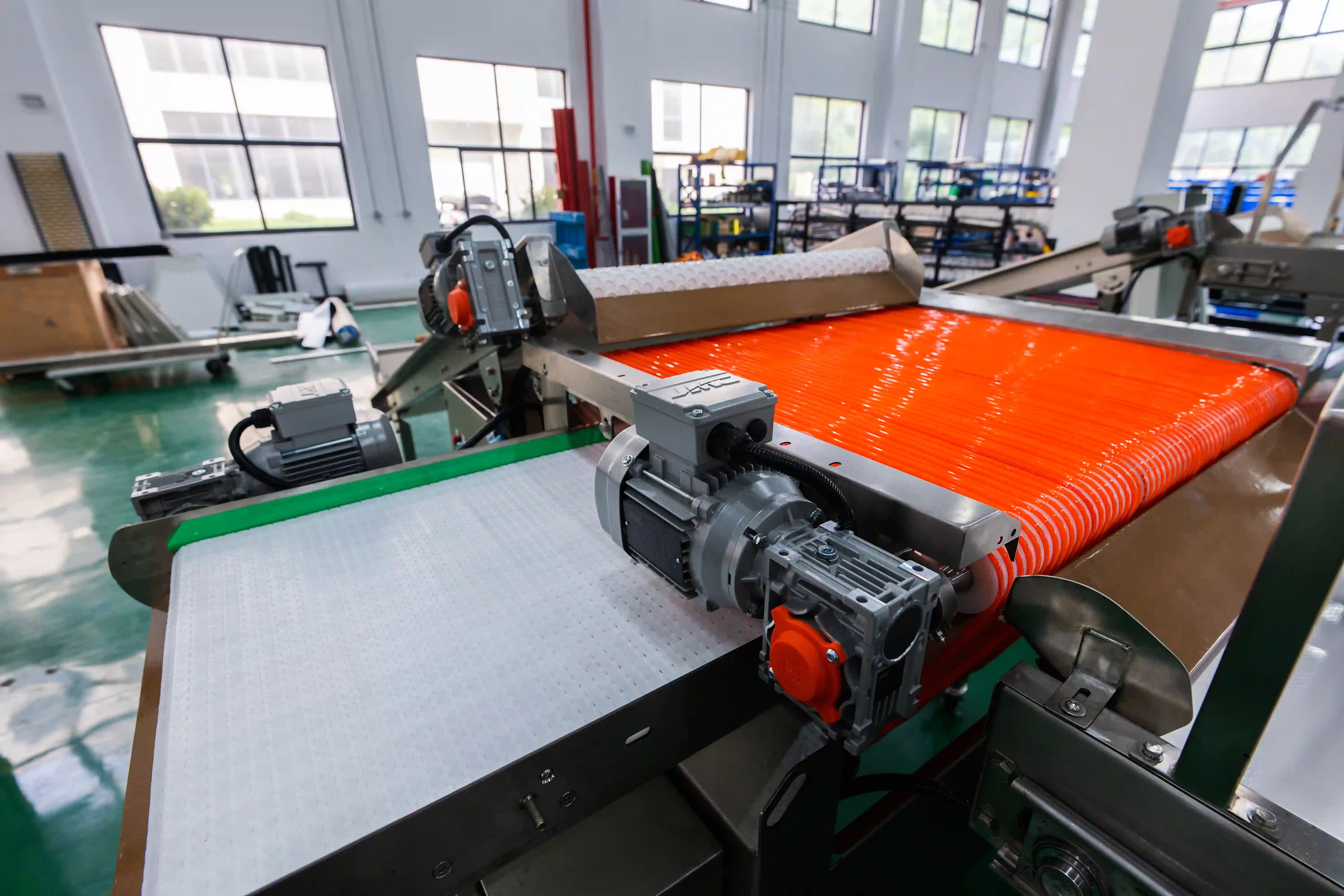

2. Pre-Sorting Impurity Remover
An automated mechanical air and screen filter system that removes immediate field debris such as twigs, dry leaves, insects, and undersized micro-berries before manual handling begins, improving subsequent inspection efficiency.
3. Manual Inspection Belt Conveyor
An ergonomically optimized, food-grade PVC conveyor designed for comfortable multi-operator deployment. Variable speed controls allow operators to conduct meticulous final visual quality checks and handle defective fruit seamlessly.

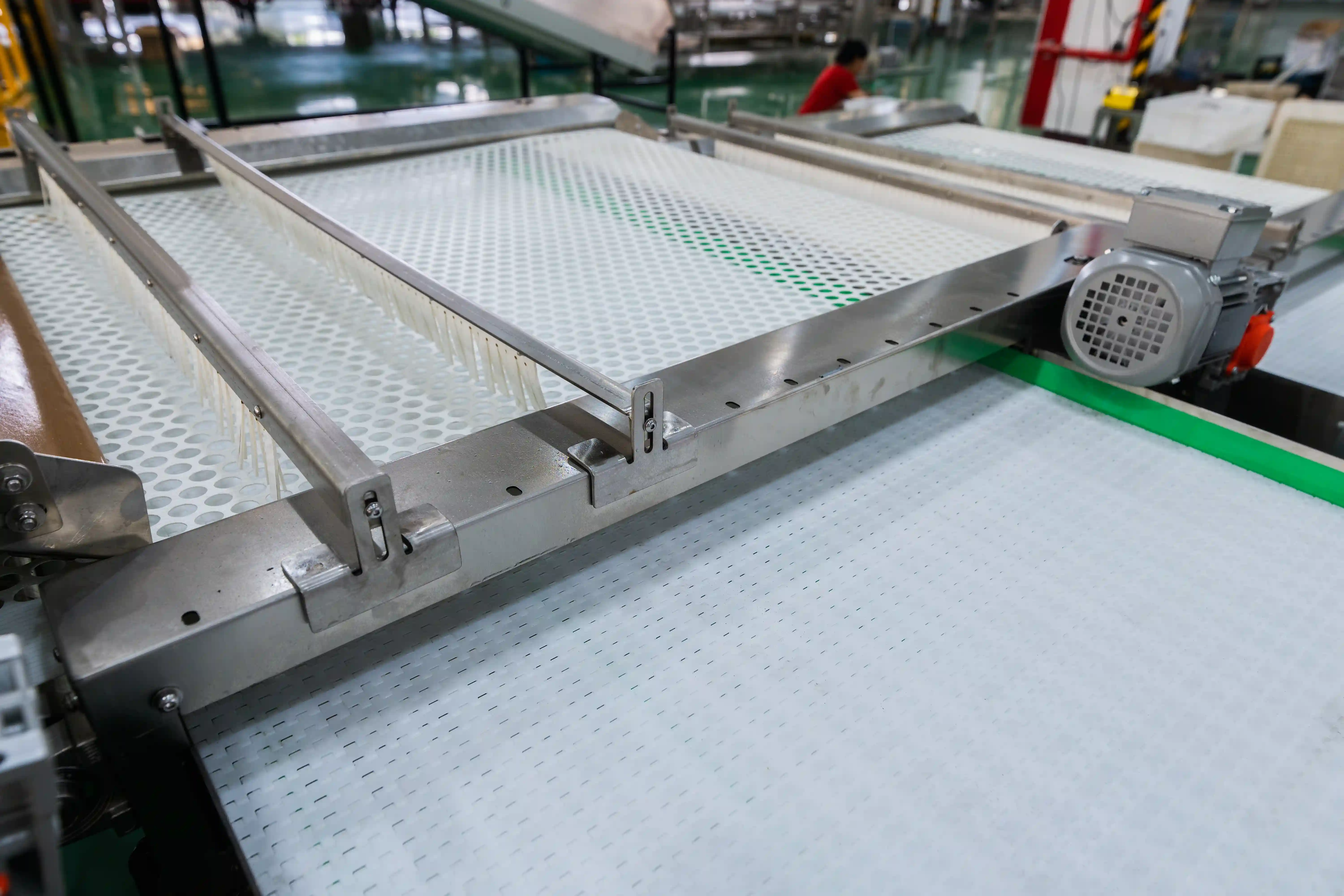

4. Low-Drop High-Efficiency Grader
The core innovation of the system. Transition thresholds between individual grading scales are kept to an absolute structural minimum (ultra-low drop design). This structural mitigation ensures zero impact bruising while grading the fruit by millimeter precision into uniform commercial categories.
Operational Highlight: True Plug-And-Play Engineering
The mechanical framework was shipped as pre-assembled, indexed modules, allowing the client to execute quick deployment and commissioning within 48 hours of arrival without domestic engineer dispatch.
Technical Specifications
Parameter | Engineering Specification |
|---|---|
Target Commodity | Fresh Blueberries / Premium Berries |
Throughput Capacity | 1,000 kg per hour (Continuous Duty) |
Sorting Metric | Low-drop precision size/diameter grading |
Material Standard | Food-Grade SUS304 Stainless Steel & Medical PVC Belts |
Control Configuration | Simplified centralized control panel (Variable Frequency Drive) |
Floor Footprint | Compact layout optimized for small-to-medium packing sheds |
Results & Business Impact
Following integration into the client's operational workflow, the system achieved immediate commercial benefits:
Zero Structural Bruising: Gentle transition mechanisms successfully retained 100% of the natural fruit bloom, ensuring top-tier market valuations in European and Asian markets.
Reduced Overhead: Automation of debris removal and continuous sorting significantly minimized manual labor dependencies.
Immediate Ramp-Up: The operational simplicity allowed local personnel to master the control panel and mechanics within the first hour of system testing.
Scale Your Post-Harvest Infrastructure
We deliver high-precision, customized berry processing lines worldwide. Contact our engineering team today for an optimized layout design and direct technical quote.
